Screening News - Preventing pressure screen failure

Why is screen fit so important?

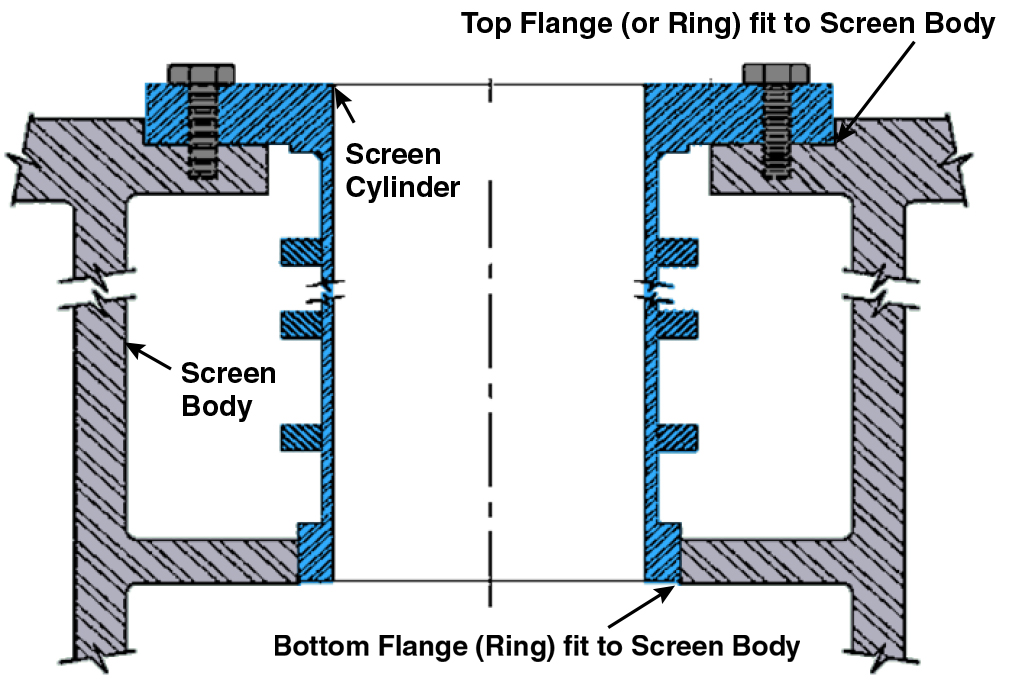

A primary cause for cylinder breakage is wear in the base of the screen housing. The interface design of the housing and cylinder make a “fit”, and maintaining that fit is critical for keeping the cylinder stationary and operating properly.

A loose fit can be indicated by vibration and cylinder movement, leading to damage that can show itself in a number of ways:

• Wear in the housing fit area
• Increased vibration of the screen
• Additional stress on the top fit where the cylinder is bolted and eventual bolt breakage
• Movement of the cylinder causing inefficient surface cleaning – leading to poor debris removal
• Additional stress on the cylinder leading to breakage
• Loss of efficiency in the filtration process

A regular screen inspection is the most critical maintenance step to prevent pressure screen failure. Inspection frequency will depend on the screening process and typical wear tendencies.

Find out more and download our 5-step inspection process here: http://ow.ly/vKOR50HS04C
