Deflakers for all furnishes

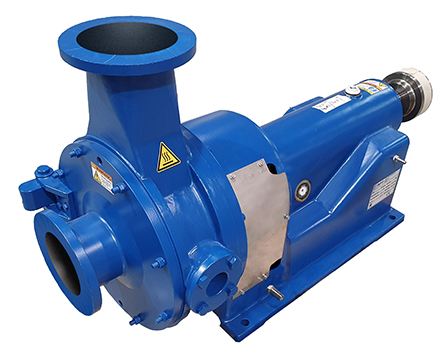

AFT’s MaxFlaker S is a compact, motor-integrated deflaker designed to homogenize pulp suspensions by separating pulp flakes and fiber bundles. Its high-intensity hydrodynamic action delivers effective deflaking without refining individual fibers, helping to minimize fiber damage and fines generation.
MaxFlaker S is available in two model sizes for a wide range of applications in the paper and board industry, including recycled and virgin fiber processing, pulp mills, broke systems, and specialty paper production. It is also suitable for non-paper applications requiring intensive mixing or material integration.
The units are designed for operating consistencies of 2–6%, operating pressures of up to 5 bar, and operating temperatures of up to 100 °C. The energy applied in a single stage depends on the application, flow rate, installed power, and deflaking element configuration.
MaxFlaker S 75 is equipped with a 75 kW motor, while MaxFlaker 200S is equipped with a 132 kW motor. Applicable capacities range from 200 lpm to 4000 lpm. The MaxFlaker S series is designed to operate with or without feeding pump, depending on the application and process layout.
The integrated motor and deflaker form a single compact unit with direct coupling to the motor shaft. Application-specific deflaking elements provide the required intensity for duties ranging from reject-stream and flash-pulp treatment to broke processing and demanding specialty paper and non-paper materials.
Benefits
